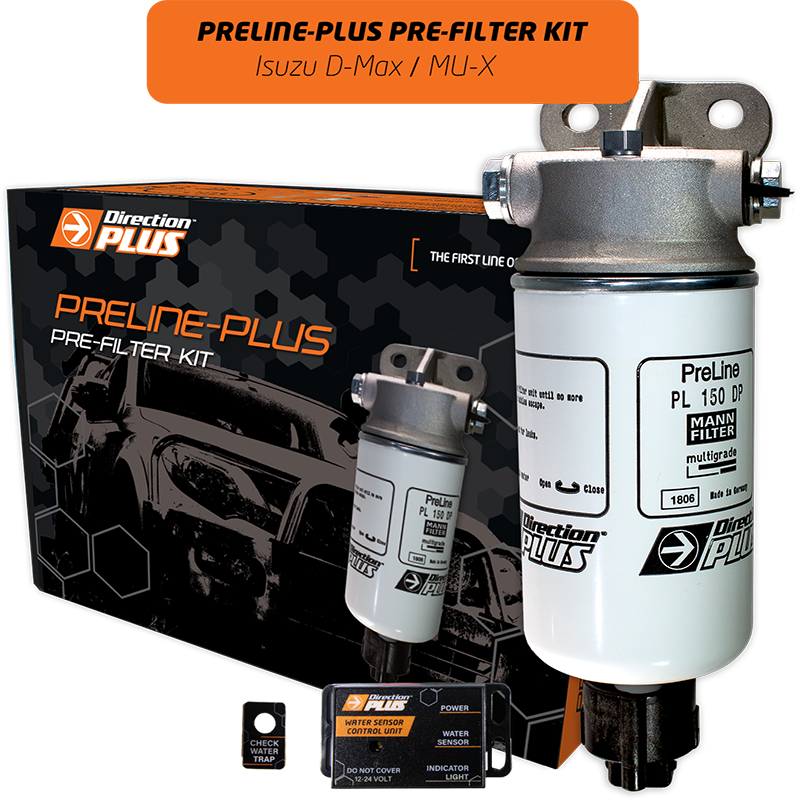

Direction Plus Preline Universal Fuel Filter Kit

$662.95 inc. GST

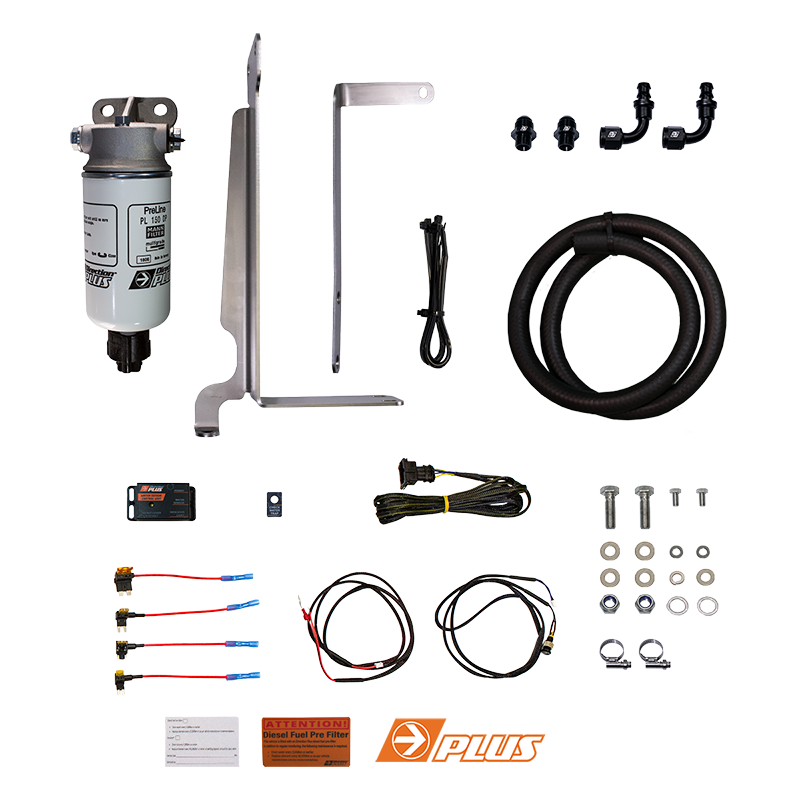

Direction-Plus™ Universal PreLine-Plus PL802DPK comes with bracket + 12mm fittings. It is an innovative pre-filter system for diesel fuel systems which ensures a high degree of water separation and particle pre-separation.

PreLine-Plus pre-filter system is designed specifically to cope with extreme weather conditions and poor fuel quality ensuring a high degree of water separation and particle pre-separation.

WATER SEPARATION EFFICIENCY

With a 100% water separation efficiency rating (based on 300um droplet size) and a long service life, meeting the specifications set by leading manufacturers of diesel fuel injection systems, this PreLine-Plus pre-filter kit will reliably protect your fuel system from corrosion, abrasion and the frequency of repairs reduced.

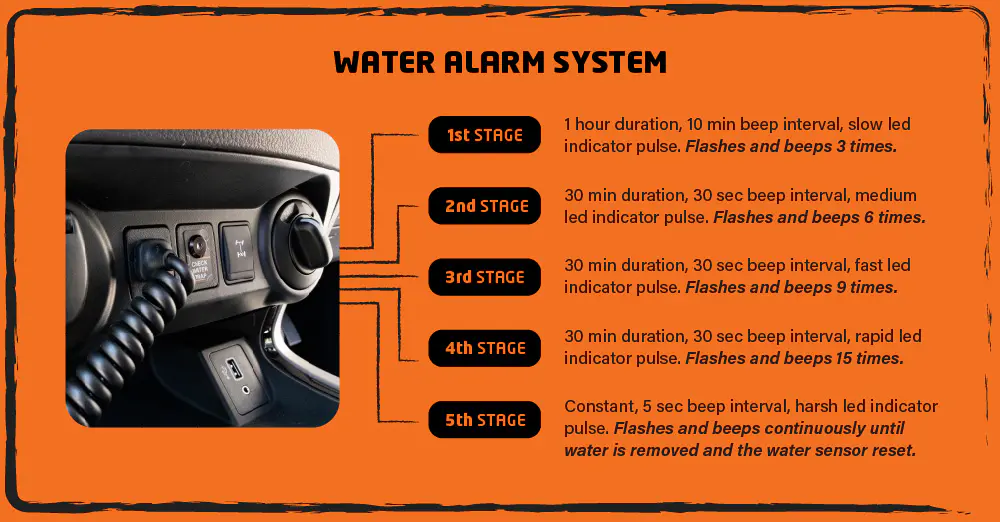

WATER ALERT SYSTEM

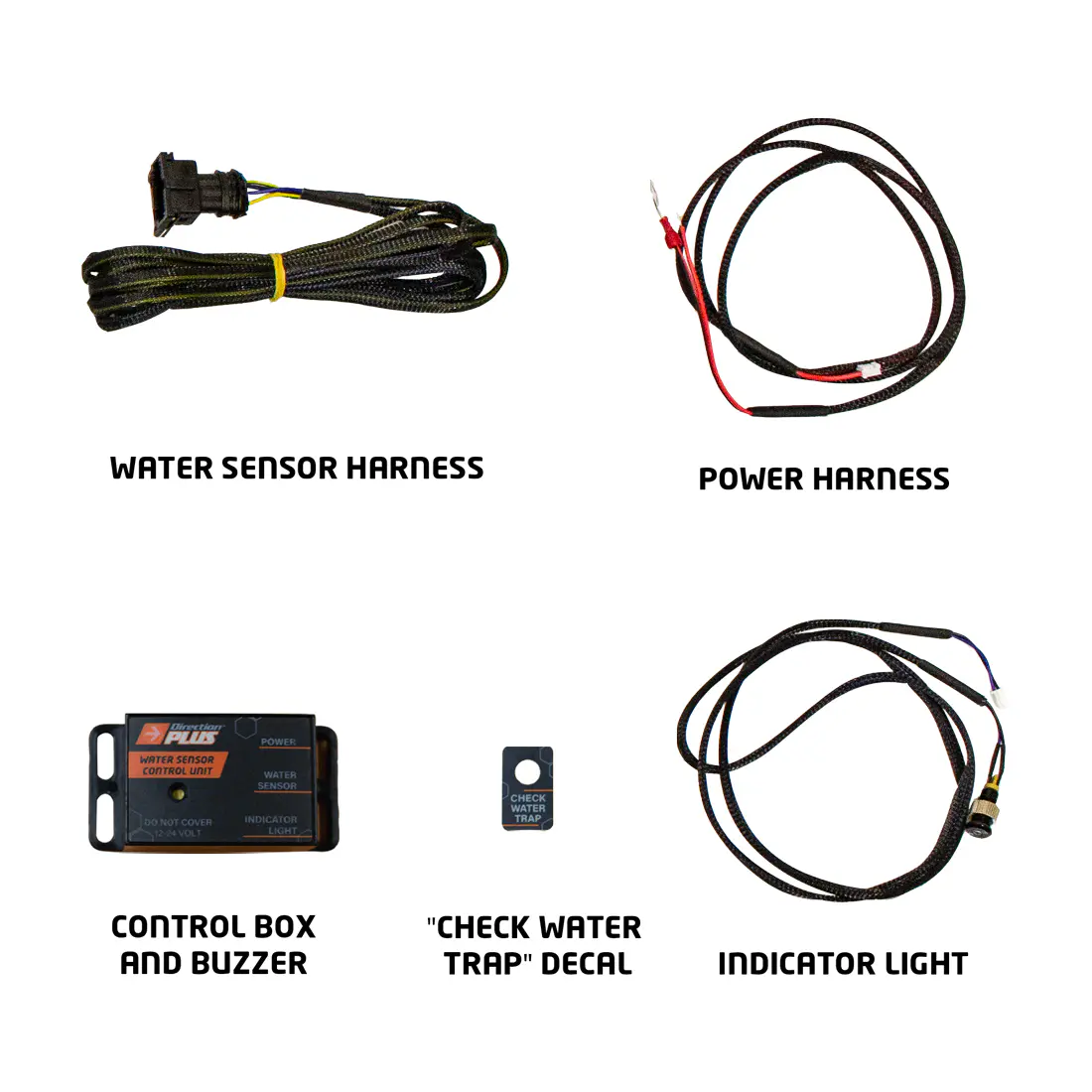

The PreLine-Plus kit includes an intuitive multi-stage water alert that separates it from other kits on the market. The alarm will notify the driver in the event that water is detected in the fuel which also eliminates the need to manually check for water.

1st stage: 1 hour duration, 10 min beep interval, slow led indicator pulse. Flashes and beeps 3 times.
2nd stage: 30 min duration, 30 sec beep interval, medium led indicator pulse. Flashes and beeps 6 times.
3rd stage: 30 min duration, 30 sec beep interval, fast led indicator pulse. Flashes and beeps 9 times.
4th stage: 30 min duration, 30 sec beep interval, rapid led indicator pulse. Flashes and beeps 15 times.
5th stage: Constant, 5 sec beep interval, harsh led indicator pulse. Flashes and beeps continuously until water is removed and the water sensor reset.

BENEFITS OF FITTING A PRELINE-PLUS PRE-FILTER KIT:

  • Remote multi-stage water alert system (visual and audible)

  • 100% water separation efficiency (based on 150μm droplet size)

  • 98% particle separation (based on 30 micron particles)

  • Reliable protection from corrosion and abrasion

  • No need to visually check for water – included alarm

  • Simple spin on style filter

UPGRADE YOUR KIT WITH PRELINE-PLUS 250 ELEMENT!

You can Upgrade your PreLine-Plus kit that originally comes with the PreLine-Plus 150 Element, to the PreLine-Plus 250 Element, which offers a volume flow rate up to 250 L/h and it is ideal for applications where engine output has been significantly increased over factory specifications and requires higher fuel flow.

Compare
SKU: PL802DPK Category:

Additional information

Weight 6 kg
Dimensions 27 × 37 cm
Make Model Year
Isuzu D-Max TF 2012 - 2017
