McHitch Adjustable Tow Tongue with McHitch Tow Pin and 50mm Ball

McHitch Uniglide Trailer Couplings

$349.00 inc. GST

McHitch adjustable tow tongue with tow pin and 50mm ball

— first of its kind. Cast aluminium body, adjustable drop positions, and supplied with McHitch tapered tow pin and 50mm ball. Rated to 5.66T towing capacity and 680 kg ball weight.

SKU: TRCOMBO4

Category:

McHitch Adjustable Tow Tongue with McHitch Tow Pin and 50mm Ball

McHitch Uniglide Trailer Couplings

$349.00 inc. GST

McHitch adjustable tow tongue with tow pin and 50mm ball

— first of its kind. Cast aluminium body, adjustable drop positions, and supplied with McHitch tapered tow pin and 50mm ball. Rated to 5.66T towing capacity and 680 kg ball weight.

SKU: TRCOMBO4

Category:

Key Features



  • Capacity: 5.66‑tonne tow rating; 680 kg ball weight
  • Construction: Cast aluminium adjustable tongue, reversible head

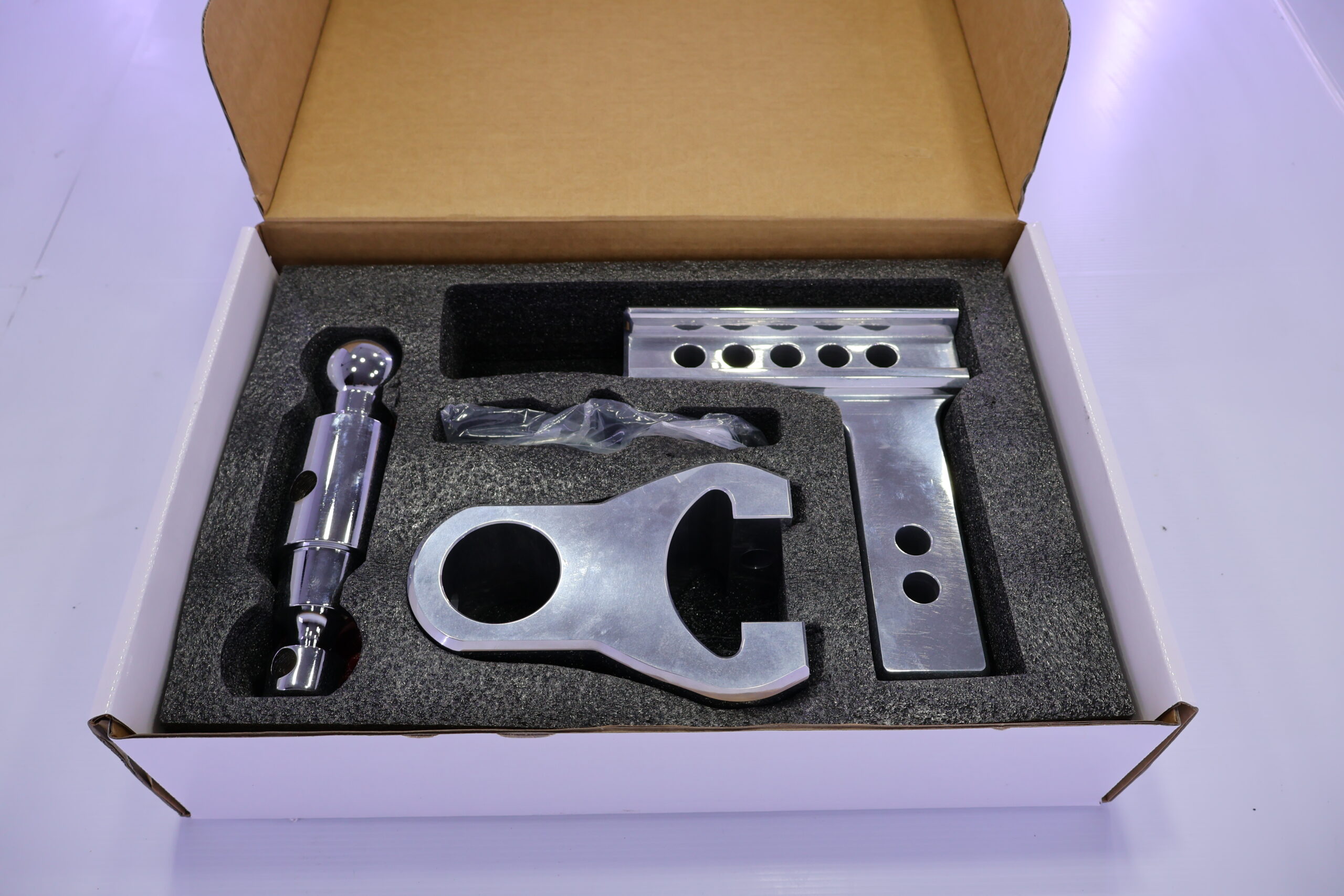

  • Includes: McHitch tapered tow pin and 50mm ball
  • Kit specs: Approx. 42 × 28 × 10 cm; 8 kg packaged





Instructions

Specifications

This beauty right here has an impressive tow weight of 12500lbs (5.66 TONNE) and a high ball weight rating of 1500lbs (680kg). This allows for serious off road towing or even some really heavy caravans and trailers on the road.

Description

The McHitch adjustable tow tongue with tow pin and 50mm ball is a world‑first innovation in towing hardware. For the first time, McHitch has combined an adjustable cast aluminium tow tongue with a factory‑supplied tapered tow pin and 50mm ball, giving tourers a complete, lightweight, and versatile solution.

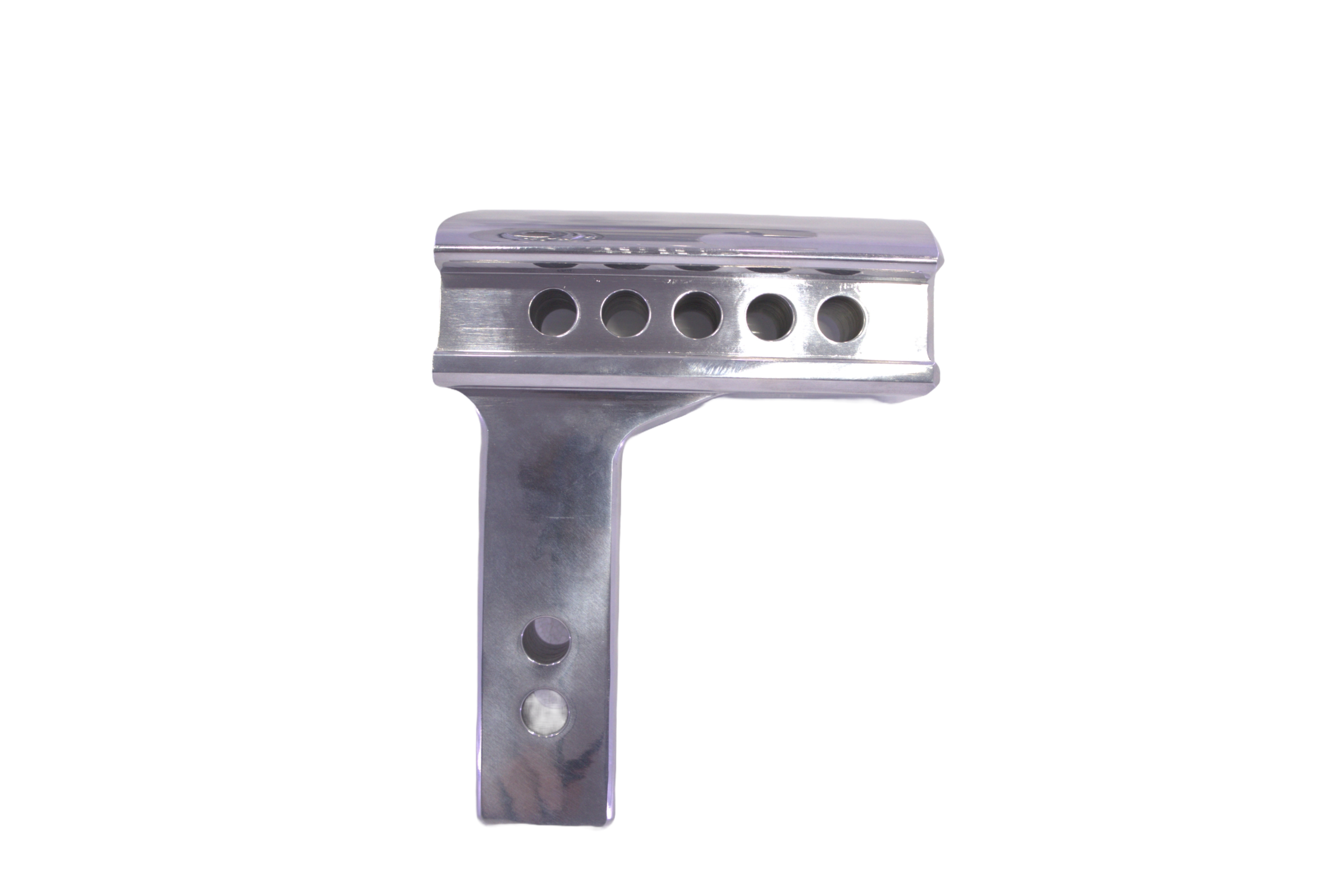

Cast Aluminium Construction

Unlike traditional forged steel tongues, this assembly is made entirely from cast aluminium. That means:

  • Reduced weight for easier handling and installation
  • Corrosion resistance for long‑term durability
  • Strength and reliability tested to McHitch standards

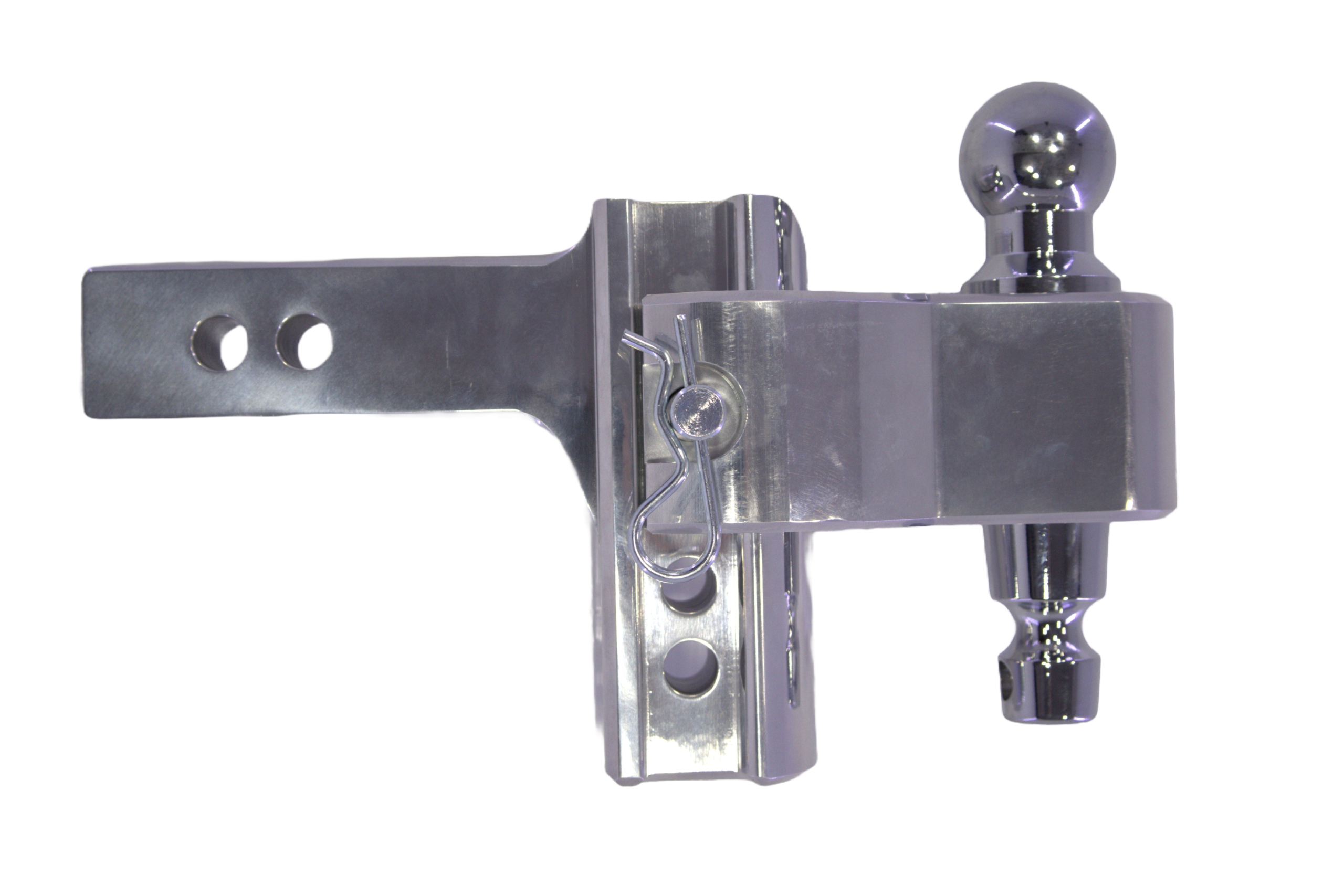

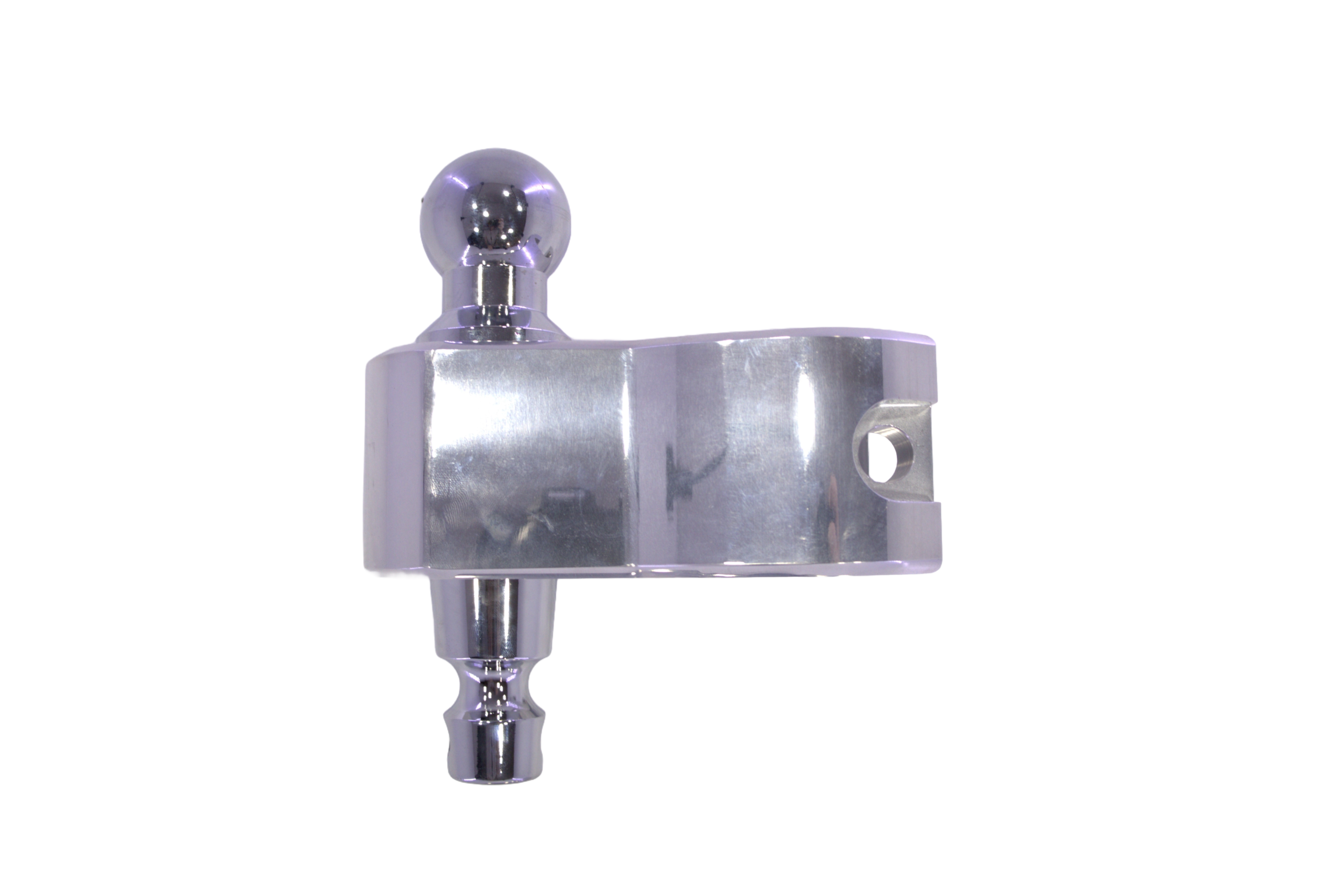

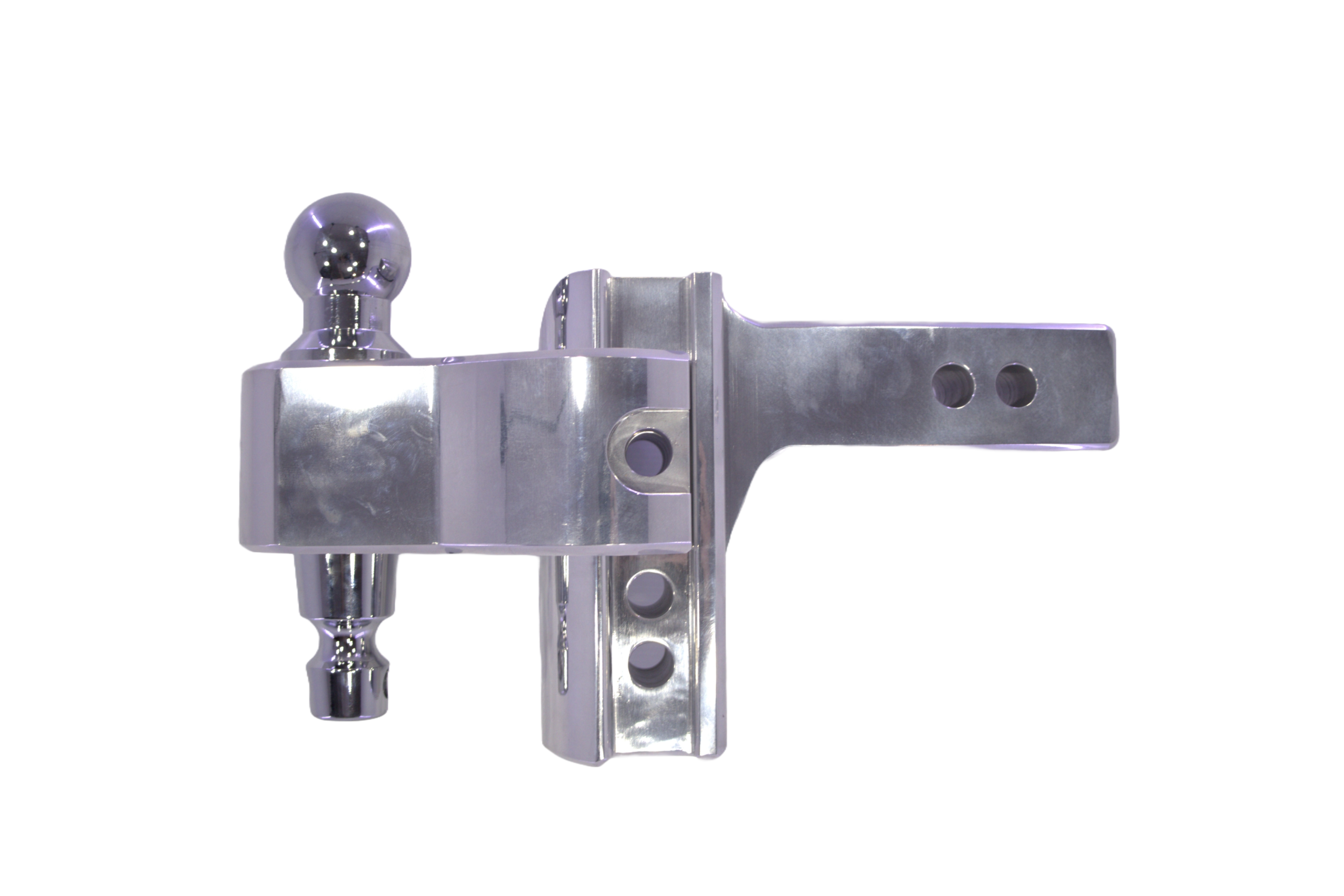

Adjustable, Reversible Head

  • Multiple drop positions allow fine‑tuning of towing geometry
  • Reversible head: McHitch tapered tow pin on one side, 50mm ball on the other
  • Quick‑change convenience for mixed fleets and multi‑purpose rigs

Compatibility

  • ✅ Fits Hayman Reese‑style 2″ square receivers
  • ✅ Suits McHitch Drop‑On couplings only
  • Not compatible with McHitch Automatic couplers
  • Ideal for caravans, campers, and hybrids requiring flexible towing setups

Performance Benefits

  • Versatility: adjust drop height to suit different trailers
  • Safety: rated to 5.66T towing capacity and 680 kg ball weight
  • Durability: cast aluminium resists corrosion and reduces weight
  • Convenience: supplied with tow pin and ball — no extra purchases needed

Why Choose McHitch Adjustable?

This is the first adjustable tow tongue of its kind, designed to give tourers maximum flexibility. By combining adjustability with a complete kit and lightweight aluminium construction, McHitch has created a product that saves time, reduces hassle, and delivers confidence in every kilometre
