Specifications
Key Features:
- Maximum Power Output: 200W ±5%
- Cell Type: Monocrystalline Topcon
- Efficiency Rate: 25.0%
- Surface Coating: ETFE film for enhanced durability and weather resistance
- Fabric Material: 1680D
- Colour: Black
Dimensions & Weight:

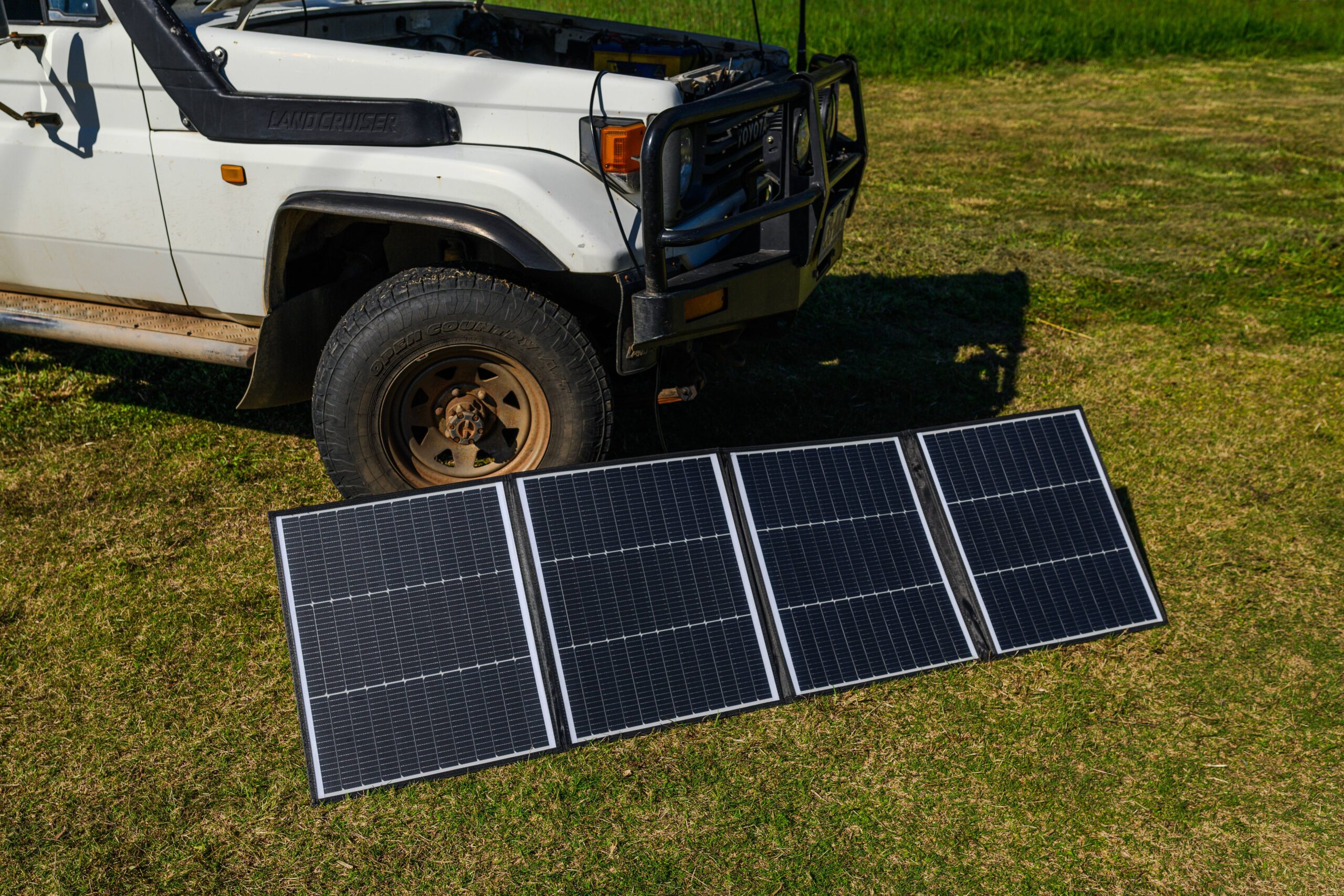

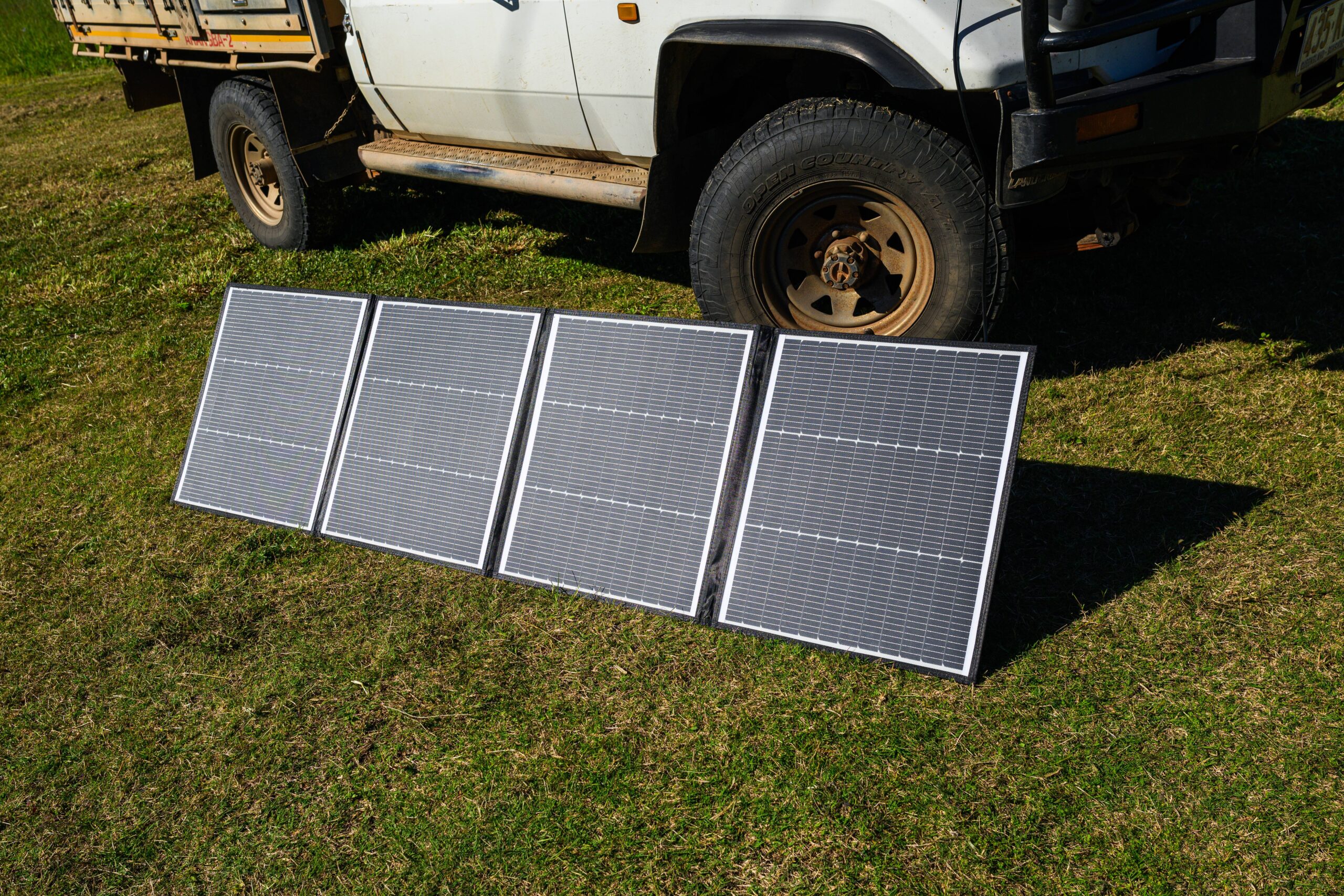

- Open Size: 2033mm x 592mm

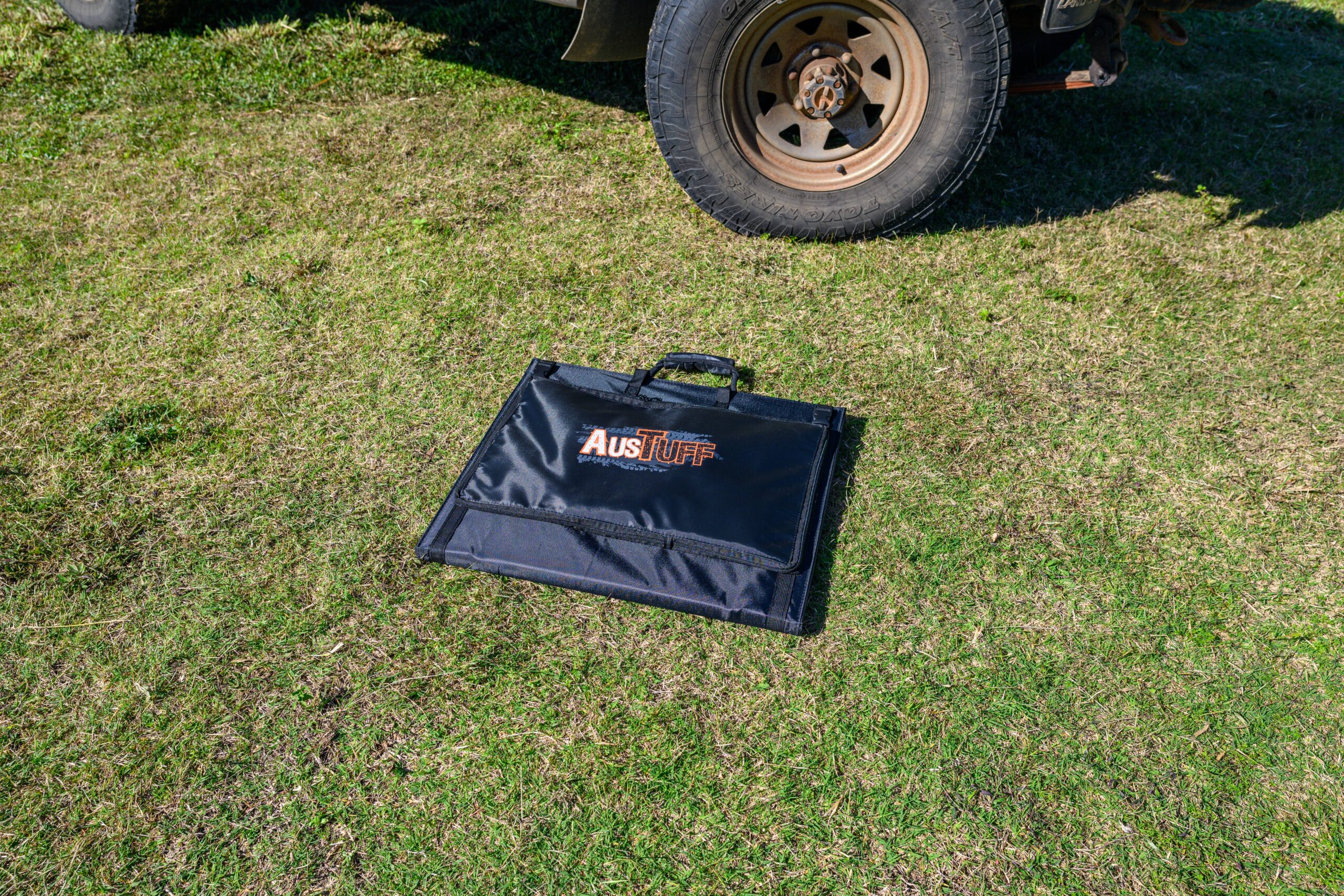

- Folded Size: 592mm x 502mm
- Folded Thickness: 43mm
- Net Weight: 7.80kg
Electrical Specifications:
- Voltage at Max Power (Vmp): 22.13V
- Current at Max Power (Imp): 9.04A
- Open Circuit Voltage (Voc): 25.91V
- Short Circuit Current (Isc): 10.09A
- Maximum System Voltage: 1000V
- Maximum Series Fuse Rating: 15A
Environmental Performance:
- Operating Temperature Range: -20°C to 50°C
- NOCT: 46°C ± 2°C
- Current Temp Coefficient: +0.05% per °C
- Voltage Temp Coefficient: -0.35% per °C
- Power Temp Coefficient: -0.45% per °C
- Standard Test Conditions: Irradiance 1000W/m², Module Temp 25°C, AM=1.5
